LINIO NEON 1617 HE
Large

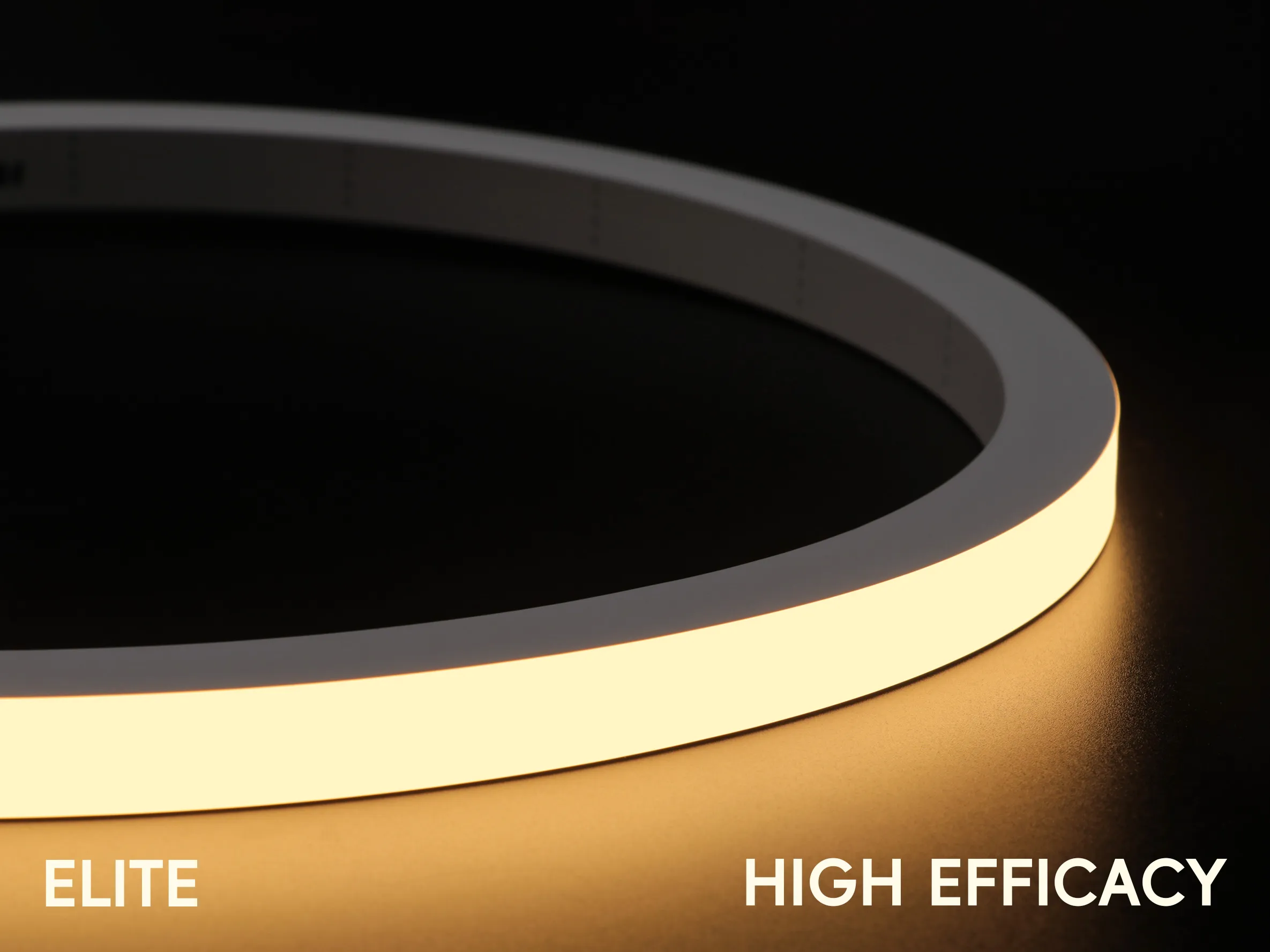

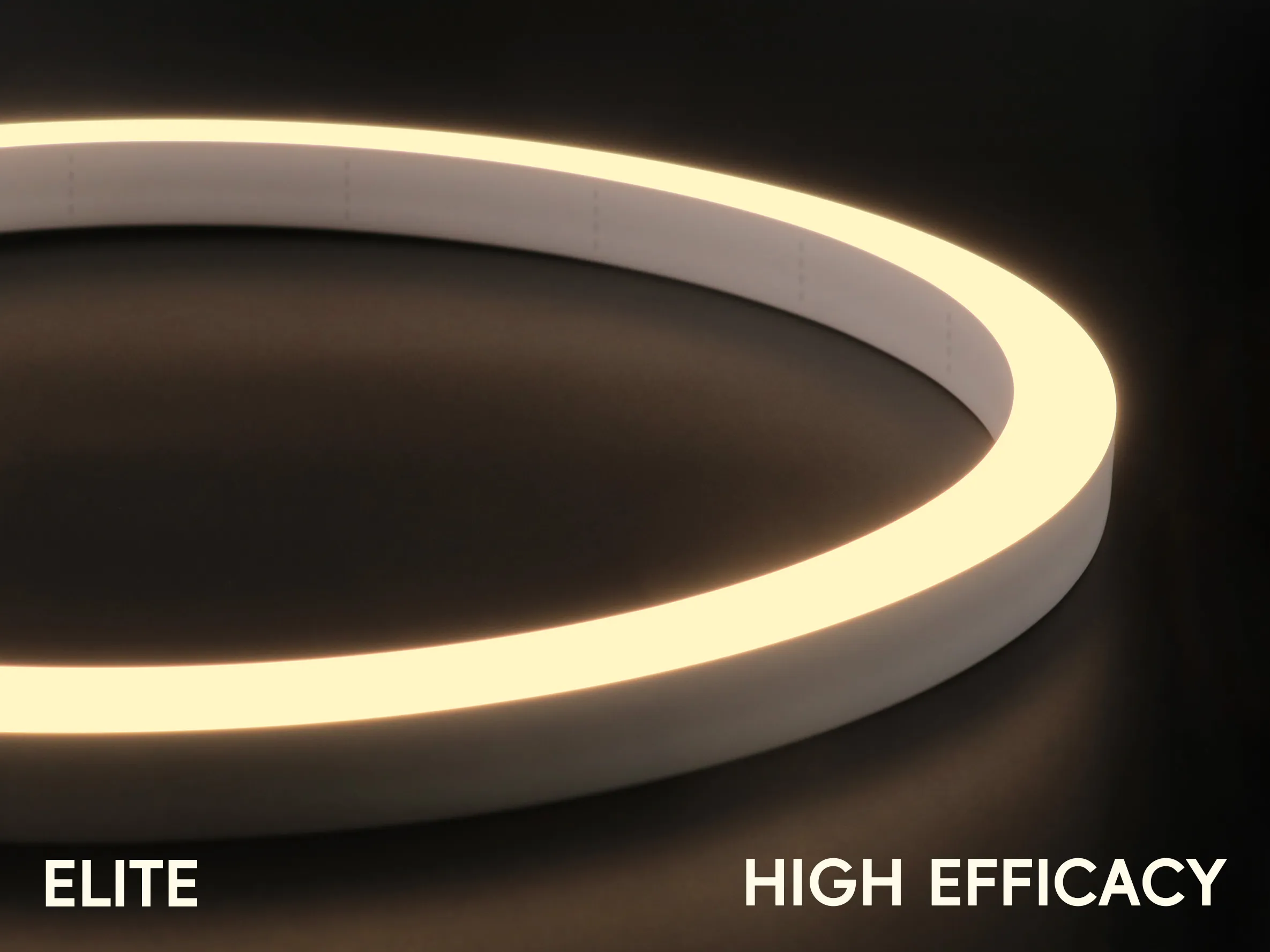

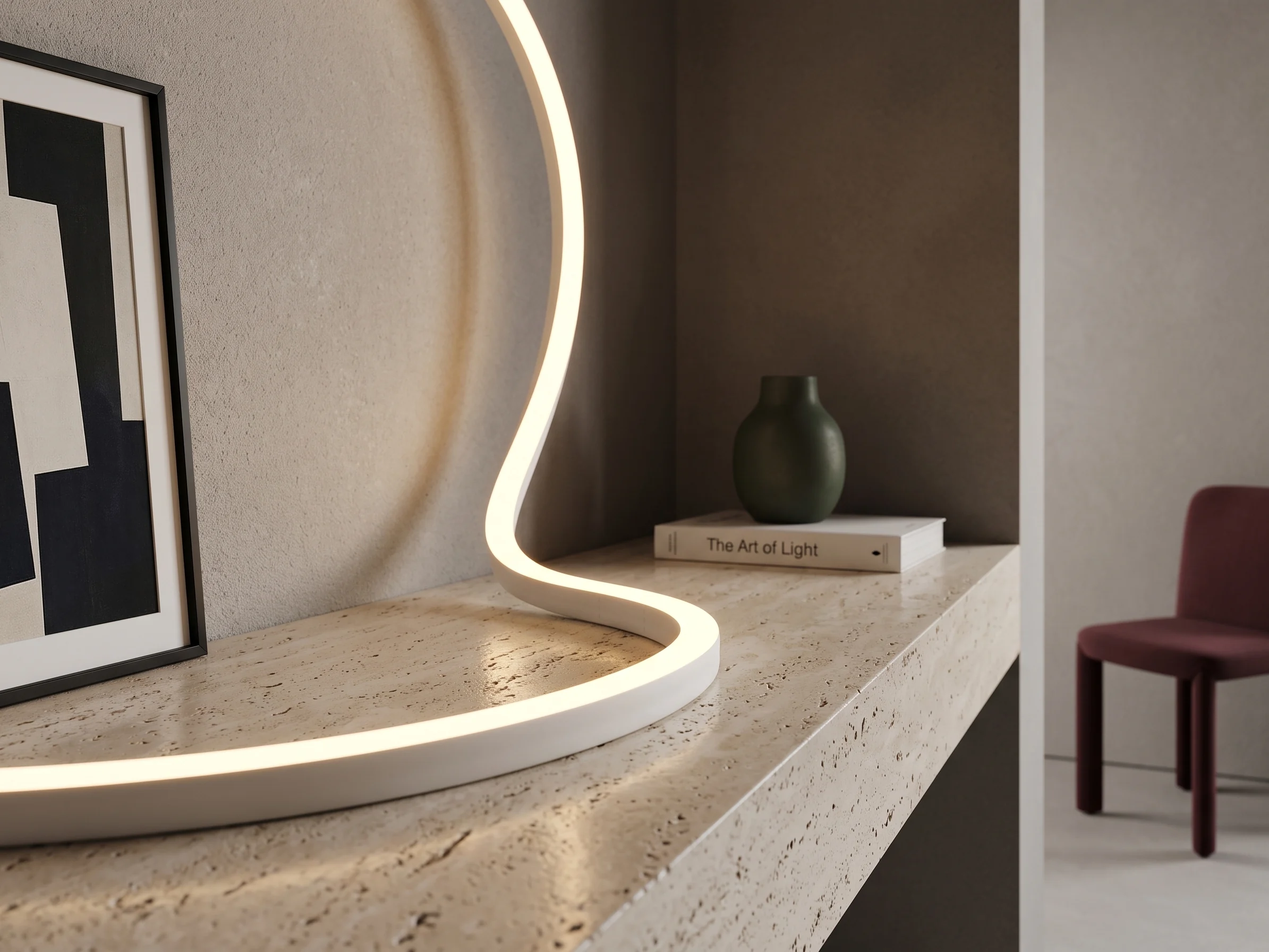

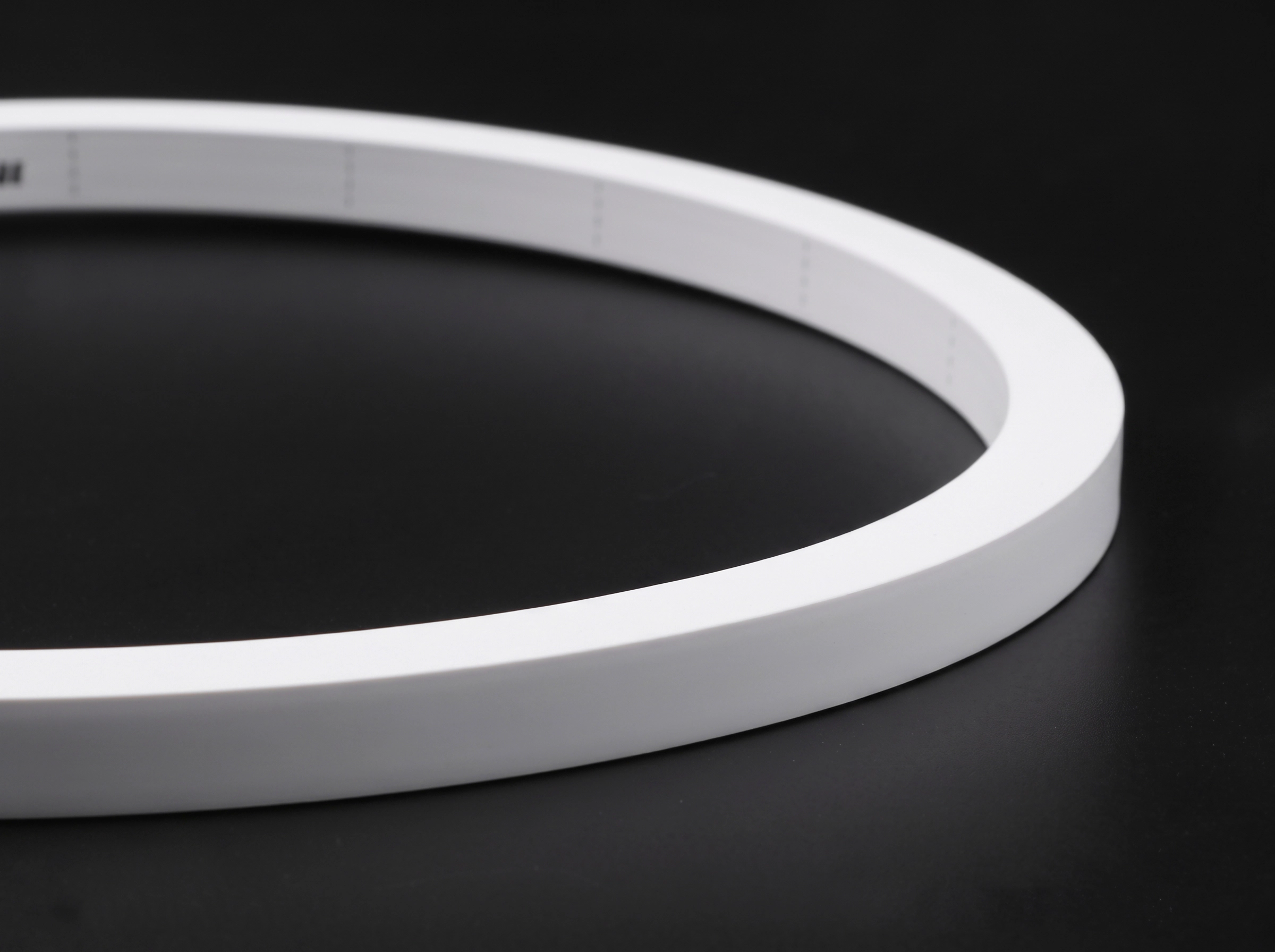

LINIO NEON 1617 HE is a sustainable, 16mm x 17mm architectural neon strip delivering an industry-leading efficacy of 102 lm/W. This IP68 rated fixture produces a powerful, dot-free output of up to 1530 lm/m (465 lm/ft) while significantly reducing energy consumption. Engineered for longevity with UV and solvent-resistant silicone, it supports both Vertical and Horizontal bending, making it the definitive eco-conscious choice for high-impact facades and building contours.
• CCT : 2200K, 2700K, 3000K, 3500K, 4000K, 5700K
• Ra : ≥90
• MacAdam Ellipse(SDCM) : ≤3
• Bending Direction : Vertical & Horizontal Bending
• Standard Lumen Output: 1502 lm/m (@3500K, 15W/M)
• Efficacy: 102.3LM/W @3000K 9.6W
• Mounting : Aluminum Profile, Clips
• Voltage : 24V DC
• Color : White (Matte Surface)
• Power : 9.6W/M, 15W/M
• IP Rating : IP68, IK10 with profile
• Dimension : 16mm(W) x 17mm(H)
• Lens : Diffused Silicone
• Unit cut : 62.5mm
• Max running length : 10M@9.6W/M
• Operating Temperature : -40℃ to 65℃
• Warranty : 5 Years
• Certification : UL, cUL, TÜV, CE, RoHS, REACH, CB
