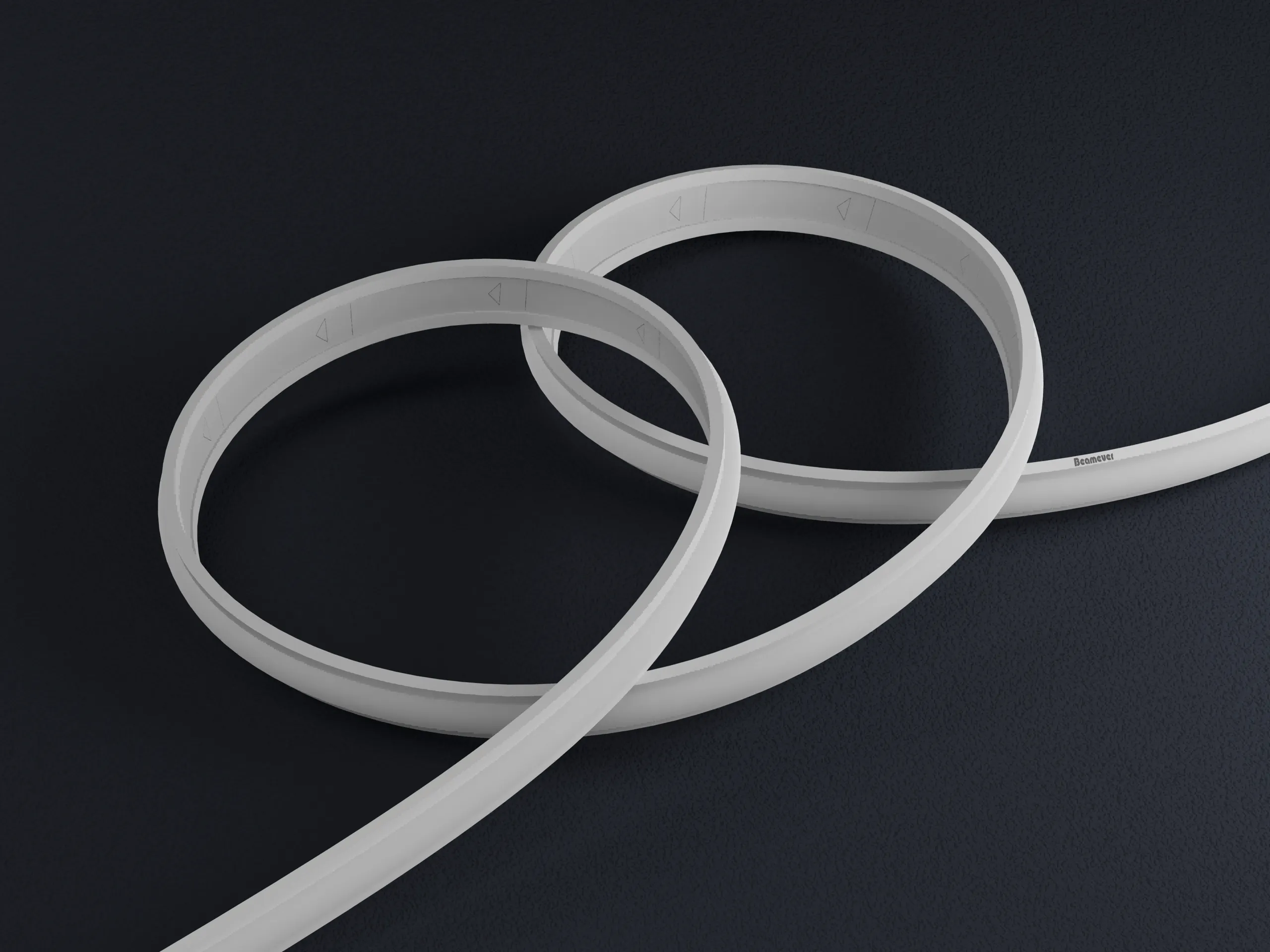

LINIO NEON EOS TV
Compact Neon Series
Linio Neon EOS TV is built on a neon and tape in one hybrid design, offering a versatile top-bending profile for precision architectural lighting. Engineered for incredibly smooth diffusion without lenses, this 10mm x 4.2mm luminaire provides a perfectly uniform, dot-free aesthetic for curved or straight runs in demanding environments.
• CCT : 2200K, 2700K, 3000K, 3500K, 4000K
• Efficacy : 60.9LM/W @3000K 9.6W
• Ra : ≥ 90
• MacAdam Ellipse(SDCM) : 3 steps
• Bending Direction : Vertical Bending
• Mounting : Aluminum Profile, Clips
• Input Voltage : 24V DC
• Color : White (Matte Surface)
• Power : 4.8W/M, 9.6W/M, 14.4W/M
• IP Rating : IP65
• Dimension : 10mm(W) x 4.2mm(H)
• Lens : Diffused Silicone
• Operating Temperature : -40℃ to 45℃
• Unit Cut : 25mm
• Warranty : 5 Years
• Certification : UL, cUL, TÜV, CE, RoHS, REACH, CB
