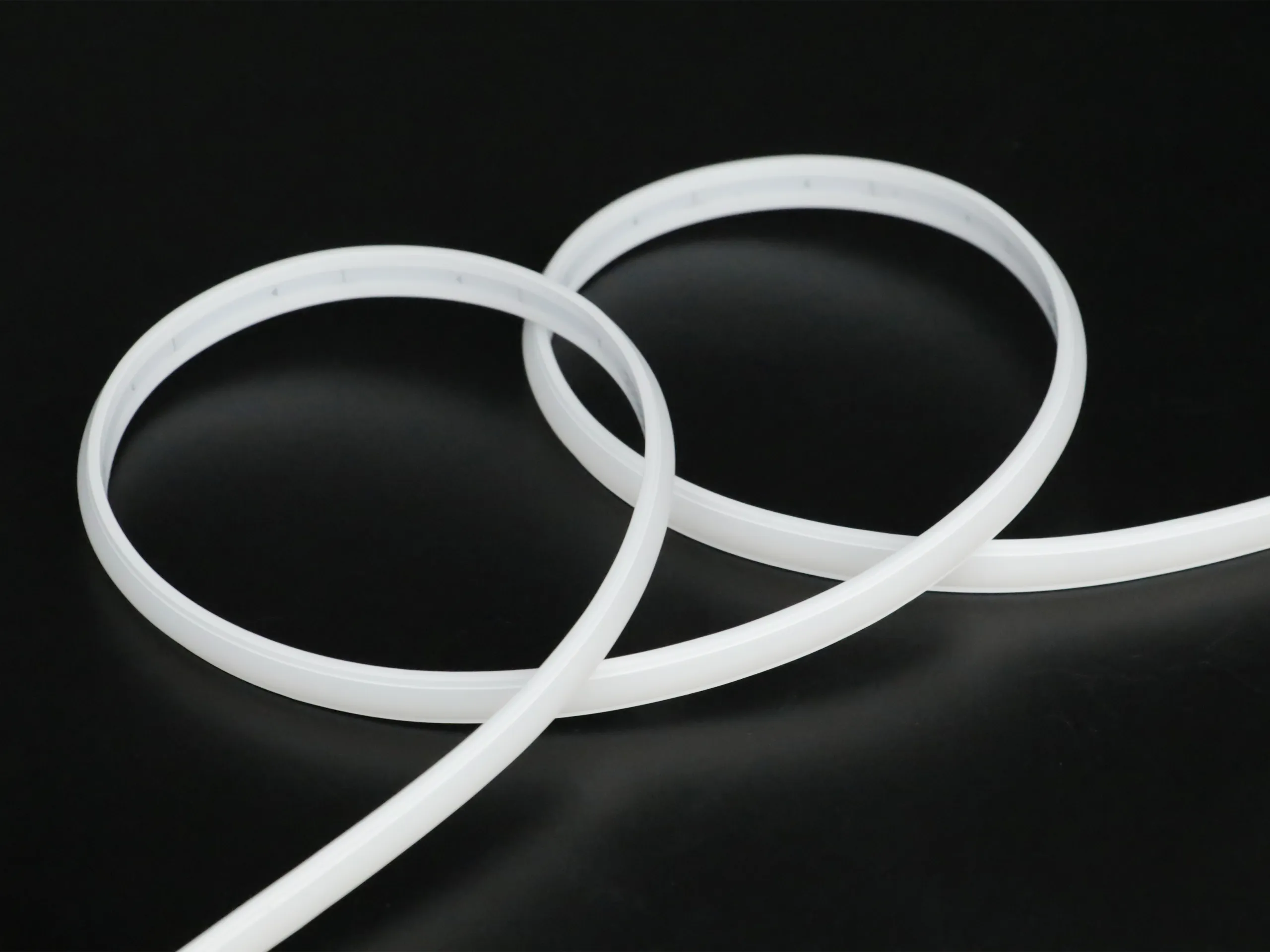

LINIO NEON EOS TV HE TW
Compact Neon Series
Linio Neon EOS TV HE TW utilizes a neon and tape in one hybrid design to offer dynamic CCT tuning from 2700K to 6500K. Delivering up to 900 lm/m (274 lm/ft), this top-bending luminaire achieves incredibly smooth diffusion without lenses, allowing its compact 10mm x 4.2mm footprint to integrate seamlessly into human-centric lighting and millwork.
• CCT : 2700K+6500K
• Efficacy : 88.2LM/W @2700K+6500K 13.6W
• Ra : ≥ 90
• MacAdam Ellipse(SDCM) : 3 steps
• Bending Direction : Vertical Bending
• Mounting : Aluminum Profile, Clips
• Input Voltage : 24V DC
• Color : White (Matte Surface)
• Power : 13.6W/M
• IP Rating : IP65
• Dimension : 10mm(W) x 4.2mm(H)
• Lens : Diffused Silicone
• Operating Temperature : -40℃ to 45℃
• Unit Cut : 33.33mm
• Warranty : 5 Years
• Certification : UL, cUL, TÜV, CE, RoHS, REACH, CB
